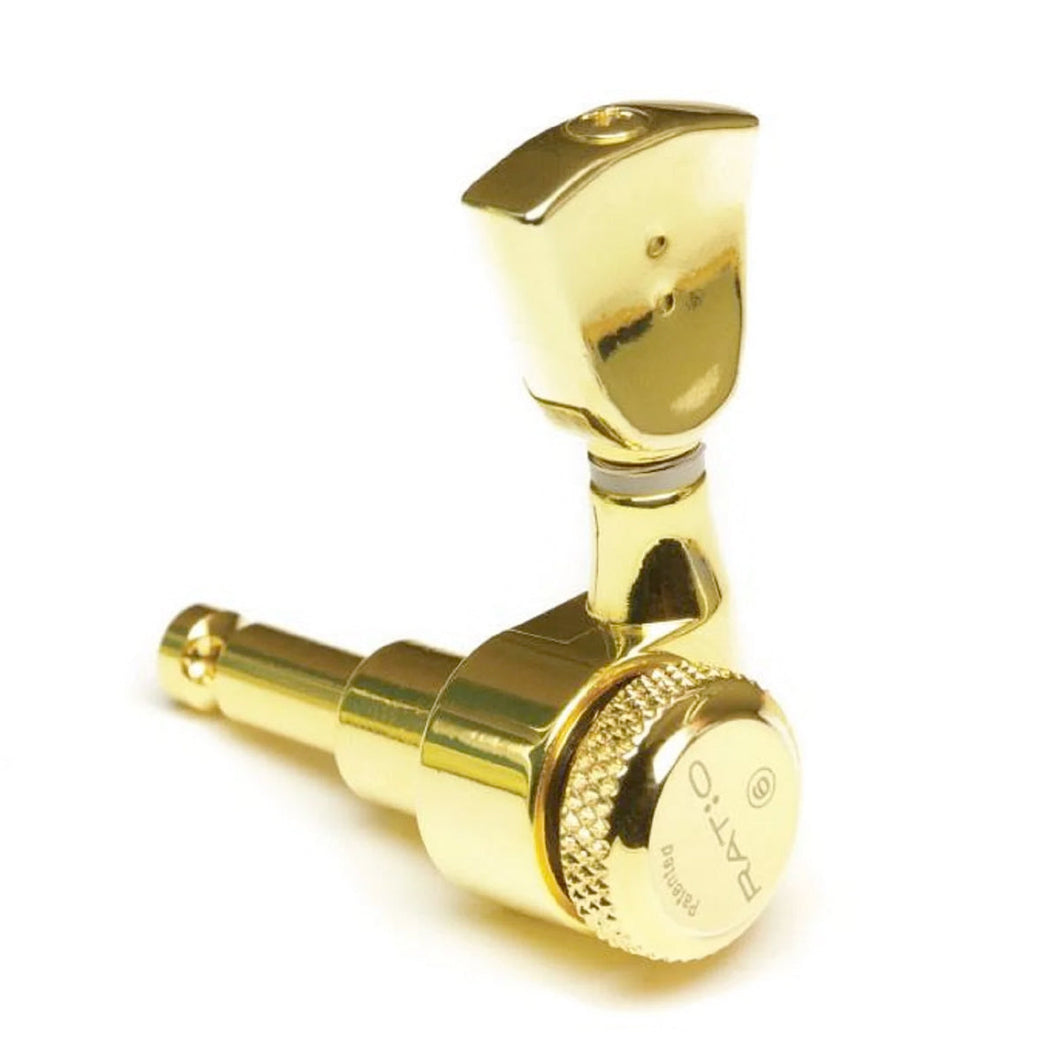

GraphTech RATIO Electric Guitar 3+3 Vintage Locking Machine Heads ~ Gold ~ Left Hand
Product Description
Please not that this product showing as in stock means that it is available for despatch from our supplier - the lead time is approximately 3 working days
The PRL-8341 is a left-handed set of Locking RATIO® Calibrated Machine Heads for electric guitars that use 3 + 3 tuners, such as Gibson style and PRS style guitars.
A great upgrade over single-gear machine heads, such as Grover, Schaller, Sperzel, Kluson, etc.
Probably the easiest machine heads to retrofit using the Invisomatch Mounting Plates which allows you to use your existing screw holes.
It has a two-pin casing that can be used as is, or with our Patented InvisoMatch Mounting Plates.
4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.
Gear ratio: unique for each string position - one turn-one tone
Peg holes diameter required: 13/32" (10mm)
String post diameter: 0.236" (6mm)
String post length to string hole: 0.910” (23mm)
Weight per single machine head: 0.083lbs (38g)
Weight per set of six: 0.496lbs (225g)
String diameter up to 72 gauge
Includes 6 machine heads, mounting screws and bushings
Includes complimentary 4 sets of aluminum mounting plates
